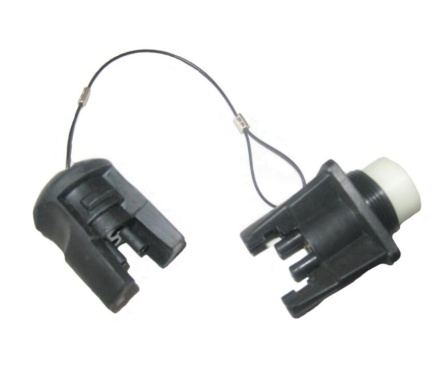

High-reliability geophone sensors for engineering, survey and seismic acquisition. Other configurations, cases and string assemblies are available on request. All sensors are supplied with test certificates.



Specification
| Model | S10045 | S10050 | S10101 | S10140 | S10102 | S10103 | S10104 |
|---|---|---|---|---|---|---|---|
| Type | 4.5 Hz | 5 Hz | 10 Hz-R | 14 Hz | 10 Hz | 10 Hz-P | 10 Hz-PR |
| Natural frequency, Hz | 4.5 ± 10.0 % | 5 ± 10.0 % | 10 ± 5.0 % | 14 ± 5.0 % | 10 ± 5.0 % | 10 ± 2.5 % | 10 ± 2.5 % |
| Coil resistance, Ω | 375 ± 7.5 % | – | 375 ± 5.0 % | 375 ± 5.0 % | 395 ± 5.0 % | 395 ± 2.5 % | 375 ± 2.5 % |
| Open-circuit damping | 0.6 ± 7.5 % | 0.7 ± 5 % | 0.271 ± 5.0 % | 0.2 ± 5.0 % | 0.30 ± 5.0 % | 0.316 ± 2.5 % | 0.25 |
| Closed-circuit damping | – | – | 0.6 ± 5.0 % | 0.6 ± 5.0 % | 0.70 ± 5.0 % | 0.7 ± 2.5 % | 0.686 + 5 % |
| Open-circuit sensitivity, V·s/m | 28.8 ± 7.5 % | 98 ± 5 % | 28.8 ± 5.0 % | 28.8 ± 5.0 % | 28.0 ± 5.0 % | 27.5 ± 2.5 % | 28.8 ± 2.5 % |
| Sensitivity with shunt resistor, V·s/m | – | – | 22.7 ± 5.0 % | 18.2 ± 5.0 % | 20.0 ± 5.0 % | 19.5 ± 2.5 % | 20.9 ± 2.5 % |
| Damping resistance, Ω | – | – | 1400 | 640 | 1000 | 1000 | 1000 |
| Harmonic distortion, % | < 0.20 | ≤ 0.20 | < 0.20 | < 0.20 | < 0.20 | < 0.1 | ≤ 0.1 |
| Spurious frequency, Hz | ≥ 140 | > 250 | ≥ 240 | ≥ 240 | ≥ 200 | > 250 | > 240 |
| Moving mass, g | 11 | 15.8 | 11.3 | 11.6 | 11 | 11.2 | 11.0 |
| Max. coil displacement (p-p), mm | 4 | 2 | 2 | 2 | 1.5 | 1.5 | 2.0 |
| Max. tilt angle | ≤ 20° | ≤ 20° | ≤ 20° | ≤ 20° | ≤ 20° | ≤ 10° | ≤ 10° |
| Operating temperature, °C | -40 to +100 | -40 to +80 | -40 to +100 | -40 to +100 | -40 to +100 | -40 to +100 | -40 to +80 |
| Element height, mm | 36 | 33.5 | 32 | 32 | 33.5 | 33.5 | 32.0 |
| Element diameter, mm | 25.4 | 27.3 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 |
| Weight, g | 86 | 105 | 74 | 74 | 86 | 86 | 74 |
| Warranty, years | 1 | 1 | 3 | 3 | 3 | 3 | 3 |
