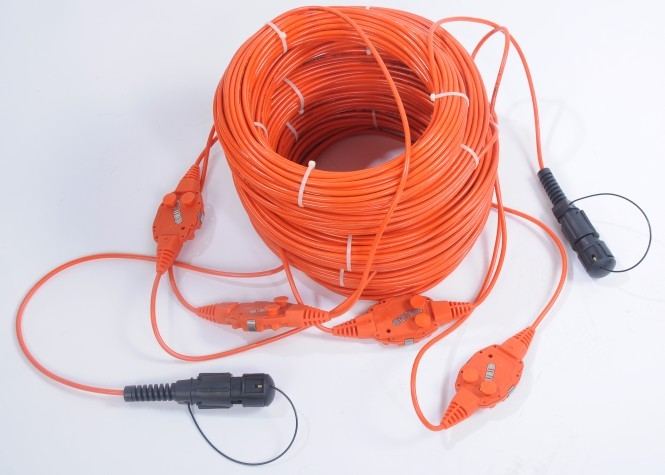

Land seismic cables for dry and wet field conditions, with Kevlar stress members. Additional cable types, takeout configurations and custom lengths are available per project specification.


Land seismic cables
| Part No. | S31001 | S31002 |
|---|---|---|
| Name | ST+ | WPSR |
| Field conditions | Dry | Wet |
| Conductor type | Stranded | Stranded |
| Water blocked | No | Yes |
| Max. water depth | Rain | 15 m (50 ft) |
| Diameter | 6.5 mm (0.25 in) | 9.5 mm (0.37 in) |
| Stress member | Kevlar | Kevlar |
| Weight | 47 kg/km (104 lb/km) | 95 kg/km (211 lb/km) |
| Double jacket | No | Yes |
| Stress braid | No | Yes |
| Anchoring device | No | Yes |
| Operating temperature | -45 to +70 °C (-49 to +158 °F) | -40 to +70 °C (-40 to +158 °F) |
| Storage temperature | -45 to +70 °C (-49 to +158 °F) | -55 to +85 °C (-67 to +185 °F) |
| Max. length — in line | 110 m (360 ft) | 90 m (295 ft) |
| Max. length — transverse | 300 m (980 ft) | 250 m (820 ft) |
| Max. length — line detours | 400 m (1310 ft) | 350 m (1150 ft) |
| FM4 connector type | ST+ type | WPSR type |
Leader cables
Polyurethane jacket; tinned copper-clad steel conductors (19 strands) with polypropylene insulation; water-blocked or dry option; moulded, clip-on poly or metal D-loop.
| Part No. | Outside diameter | Conductors |
|---|---|---|
| S31003 | 4.6 mm | 2 |
| S31004 | 4.6 mm | 3 |
| S31005 | 5.33 mm | 2 |
| S31006 | 5.33 mm | 3 |
| S31007 | 6.35 mm | 2 |
| S31008 | 6.35 mm | 3 |
| S31009 | 7.8 mm | 2 |
| S31010 | 7.8 mm | 3 |
Line accessories
Accessories and consumables for 408, 428 and 508 land acquisition lines: FM-4 connectors, link cables, FDU lids and O-rings, geophone cases, grounding parts and field hardware — supplied against part number.
| Part No. | Description |
|---|---|
| S32001 | FM-4 connector (S32001S: ST+ · S32001W: WPSR) |
| S32003 | Power socket for LAUL / LAUX |
| S32004 | Power cable for LAUL / LAUX |
| S32005 / S32006 | FDU lid for 428 / 408 |
| S32007 – S32009 | O-rings for 428 and 408 FDU |
| S32012 / S32022 | BG-4 / BG-3 geophone case |
| S32020 / S32021 | BG4 / BG3 sleeve |
| S32014 – S32018 | Ground clamps and ground nuts for 408 / 428 FDU |
| S32023 / S32024 | 428 FDU link cable, ST+ / WPSR |
| S32025 – S32028 | 408 link cable, end and intermediate sections |
| S32033 / S32034 | 508 link cable, end and intermediate sections |
| S32029 | LAUL lead cable |
| S32030 / S32031 | TFOI 428, green / red |
| S32010 · S32011 · S32017 · S32019 · S32032 | Plastic D-loop, spike, tripod with washer, road mat, I.D. tag |
